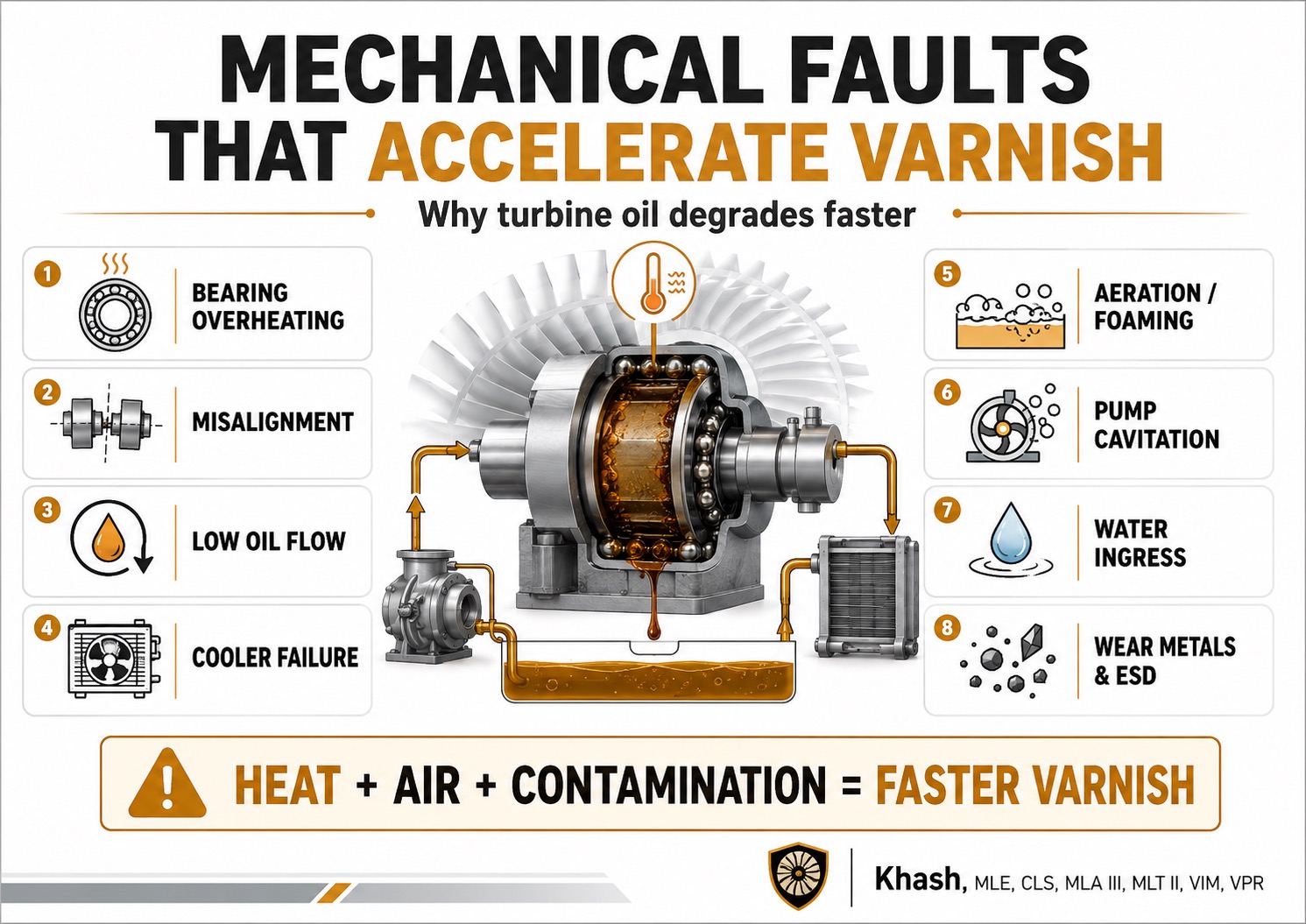

Mechanical faults in turbomachinery that make oil varnishing happen faster

In turbomachinery, varnish is usually not caused by one single “bad oil” event. It is a deposit-forming failure mode where turbine/compressor oil degrades, forms polar oxidation or thermal-degradation by-products, reaches its solubility limit, and then deposits on cooler or sensitive surfaces such as bearings, servo valves, filters, coolers, seals, and small oil passages. These deposits can restrict oil flow, reduce heat transfer, make valves stick, increase wear, and raise bearing temperature.

The important mechanical-reliability idea is this: mechanical faults accelerate varnish by creating heat, air entrainment, micro-dieseling, high shear, contamination, wear metals, or electrostatic discharge. Once varnish starts forming, it can create a feedback loop: deposits reduce cooling and oil flow, bearing temperatures rise, oil degrades faster, and more varnish forms.

1. Bearing overheating from misalignment

Coupling misalignment, casing distortion, thermal growth error, soft foot, pipe strain, or rotor-to-bearing misalignment can overload one side of a journal bearing or one pad of a tilting-pad thrust bearing. That creates a thinner oil film, higher local pressure, more frictional heat, and higher pad metal temperature. In misaligned thrust bearings, studies show local pad overheating, reduced oil-film thickness, increased oil-film pressure, and higher temperature at the most severely misaligned position.

Why this accelerates varnish: turbine oil oxidation and thermal degradation increase strongly with temperature. A widely used rule of thumb is that oxidation rate roughly doubles for every 10°C increase in operating temperature, and elevated temperature also accelerates antioxidant depletion.

Typical field clues: rising bearing metal temperature, one pad hotter than the others, high 1X vibration, abnormal shaft orbit, changed axial position, blackened oil near the bearing, coking or brown deposits on pads, and repeated filter fouling after start-up.

2. Thrust bearing overload or axial-position problems

A thrust-balance fault can come from process pressure changes, balance piston seal wear, incorrect thrust collar position, excessive axial force, steam/gas path fouling, control-valve problems, or rotor assembly issues. The result is uneven thrust-pad loading and localized high temperature. Heavy-duty tilting-pad thrust bearings are especially sensitive because their load is carried by a thin hydrodynamic oil film.

Why this accelerates varnish: localized pad hot spots thermally stress the oil. Even if the bulk reservoir oil temperature looks acceptable, the oil passing through the minimum-film-thickness zone can experience much higher local thermal stress. Severe shear in high-speed, heavily loaded turbomachinery can create localized “hot varnish” deposits even when some normal oil-analysis values appear acceptable.

3. Oil starvation or low oil flow to bearings

Oil starvation can be caused by worn main or auxiliary oil pumps, clogged strainers, blocked bearing feed orifices, stuck pressure-control valves, incorrect pressure settings, blocked oil nozzles, excessive filter differential pressure, low reservoir level, or incorrect bearing clearances. When oil flow is too low, the bearing loses cooling capacity and the oil film becomes thinner. In one steam-turbine case, inadequate cooling and high bearing-housing oil temperature reduced oil viscosity so much that the lubricant film could not adequately support the shaft, leading to bearing failures.

Why this accelerates varnish: less flow means less heat removal. The same oil stays longer in hot zones, oxidizes faster, and can leave deposits on babbitt, pads, seals, and drain areas.

4. Lube-oil cooler fouling or temperature-control faults

A very common varnish accelerator is a cooling fault: fouled oil cooler, plugged cooling-water tubes, low cooling-water flow, thermostatic valve stuck bypassing the cooler, incorrect temperature-control valve setting, or undersized cooler after uprate. Higher oil supply temperature increases oxidation rate and reduces viscosity, which can raise bearing temperature further.

This fault is dangerous because it can look like a lubricant problem, but the root cause is mechanical or heat-transfer related. Varnish on cooler surfaces can also reduce heat-transfer efficiency, which raises oil temperature and creates another self-feeding cycle.

5. Air entrainment, foaming, and micro-dieseling

Mechanical sources of air in oil include pump suction leaks, leaking pump shaft seals, low tank level, vortexing at pump suction, return oil splashing into the reservoir, poor reservoir deaeration, excessive agitation, leaking flange joints, and wrong return-line design. Entrained air bubbles can be rapidly compressed in pumps, bearing load zones, and high-pressure regions; this is called adiabatic compression or micro-dieseling.

Why this accelerates varnish: air supplies oxygen for oxidation, while bubble compression can create extremely high localized temperatures that thermally crack the oil and generate varnish precursors. Water, aeration, and wear metals such as iron and copper also act as catalysts that speed oil degradation.

Typical field clues: foamy reservoir surface, cloudy oil, noisy pump, unstable oil pressure, rising filter differential pressure, varnish in filters, and oil-analysis signs such as oxidation/nitration increase, air-release problems, or particle-count instability.

6. Pump cavitation and relief-valve recirculation

A cavitating or recirculating lube-oil pump can create aeration, pressure pulsation, local heat, and oil degradation. Common mechanical causes include restricted suction strainers, undersized suction piping, low reservoir level, high oil viscosity during cold start, blocked suction valves, excessive pump speed, worn pump internals, or a relief valve stuck open.

Why this accelerates varnish: cavitation and air entrainment promote micro-dieseling, while relief-valve recirculation can repeatedly shear and heat the same oil volume. This raises the varnish-forming load on the oil before the oil even reaches the bearings.

7. Rotor rubs, seal rubs, and high vibration

A rotor rub, labyrinth seal rub, oil deflector rub, unstable rotor orbit, oil whirl/whip, imbalance, loose bearing housing, or excessive vibration can increase bearing load variation and create intermittent hot spots. Varnish itself can also worsen vibration by affecting oil flow, heat transfer, and bearing behavior, so vibration and varnish often reinforce each other.

Why this accelerates varnish: rubs and unstable vibration create localized frictional heat and generate metal particles. Wear metals, especially iron and copper, can catalyze oxidation reactions in turbine oils.

8. Excessive shear in bearings, seals, small clearances, and control components

High-speed turbomachinery can expose oil to extreme shear in minimum bearing-film zones, thrust pads, journal bearings, hydrogen seals, oil seals, gear meshes, tight servo valves, small orifices, and high-velocity passages. Severe shear converts mechanical energy into heat at a microscopic level and can create localized deposits sometimes described as hot varnish.

This is one reason a machine can show bearing-temperature instability or localized deposits even when the reservoir oil sample does not yet show a severe varnish trend. Standard oil tests are still important, but they may miss highly localized hot-varnish mechanisms.

9. Filter-related electrostatic discharge

Electrostatic discharge is often treated as a lubrication-system design or maintenance fault rather than a rotating-element fault, but it is very important in turbine varnish. High oil velocity through certain filter media, low oil conductivity, high-viscosity cold oil, certain additive packages, and high flow density can generate charge. When the charge discharges, it can create internal sparking, damage filter or system components, and accelerate oil degradation.

Why this accelerates varnish: electrostatic discharge can break down base oil and additives, creating insoluble degradation products. STLE identifies electrostatic discharge as one of the primary contributors to varnish, and turbine-oil varnish research commonly links ESD with accelerated oil and additive degradation.

Typical field clues: clicking noise at filter housings, spark marks or burn marks on filter elements, sudden darkening of oil, rapid filter plugging, high MPC varnish potential, and varnish returning after oil changes.

10. Seal failures that allow water, steam, gas, dirt, or process contamination

Mechanical seal, gland seal, labyrinth seal, bearing isolator, breather, or reservoir-cover faults can allow water, steam condensate, process gas, dust, catalyst fines, cleaning chemicals, or incompatible fluids into the oil system. Chevron/Texaco lists contaminants such as water, solvents, gas, air, and dirt as factors that accelerate oil degradation and varnish precursor formation.

Why this accelerates varnish: water can promote additive depletion, rust, poor demulsibility, and oxidation. Dirt and wear particles provide surfaces for deposit formation. Process contamination may change oil solvency or react with additives, causing deposits to form sooner than expected.

11. Internal wear generating catalytic metals

Bearing wear, gear wear, pump wear, seal rubs, and thrust-pad distress can release iron, copper, tin, lead, chromium, aluminum, or other metals into the oil. Iron and copper are especially important because they can catalyze oxidation and speed the formation of sludge and varnish.

This means a mechanical wear fault can look like an oil-aging problem. The oil may show rising metals first, then rising oxidation, falling antioxidants, increasing MPC varnish potential, and finally visible deposits.

12. Blocked drains, poor reservoir design, and low-flow dead zones

Varnish often deposits in cooler or low-flow areas after degradation products leave solution. Mechanical or design issues such as restricted bearing drains, poor drain slope, undersized drain headers, dead legs, stagnant bypass lines, poor tank circulation, and low reservoir turnover can allow varnish precursors to settle out. Lubricant degradation products may form in one location and deposit somewhere else as the moving oil carries insoluble material through the system.

Why this accelerates premature varnish: the oil may be degrading at bearings, filters, pumps, or hot spots, but the visible deposit appears in servo valves, filters, coolers, reservoir bottoms, or drain lines. This can mislead troubleshooting unless the full oil circuit is examined.

---

Practical ranking: faults to investigate first

Priority	Mechanical fault family	Why it accelerates varnish
1	High bearing or oil temperature	Fastest route to oxidation, antioxidant depletion, and thermal degradation.
2	Misalignment / thrust overload	Creates local hot spots and high shear in bearing oil films.
3	Aeration / foaming / suction leaks	Causes oxidation and micro-dieseling.
4	Cooling-system faults	Raises bulk oil temperature and lowers viscosity.
5	Pump cavitation / low oil flow	Reduces cooling and creates air/heat.
6	Electrostatic discharge at filters	Breaks down oil/additives and creates varnish precursors.
7	Seal leakage / water or dirt ingress	Catalyzes degradation and deposit formation.
8	Wear metals from bearing, pump, or gear faults	Iron and copper accelerate oxidation.
9	Rotor rubs / vibration / oil whirl	Creates local heat, unstable films, and wear debris.
10	Dead zones and poor drain/return design	Allows degraded oil products to settle and plate out.

---

How to diagnose whether the varnish is mechanically accelerated

A good investigation should connect oil chemistry, machine symptoms, and lube-system behavior. The most useful oil tests include MPC varnish potential, RULER antioxidant testing, FTIR oxidation/nitration, acid number, viscosity, water, particle count, elemental wear metals, and insolubles. ASTM D7843 MPC is widely used for varnish potential, and ASTM D4378-20 guidance referenced by Machinery Lubrication India gives an MPC warning limit around ΔE 30 for in-service turbine oil monitoring.

RULER testing is useful because it directly measures remaining antioxidant concentration; this can show antioxidant depletion before acid number or viscosity changes become obvious.

For the mechanical side, trend these items together: bearing metal temperature, oil supply temperature, oil return temperature, oil header pressure, filter differential pressure, reservoir level, foam/air release, vibration, axial position, shaft orbit, cooler approach temperature, pump suction pressure, and seal leakage. A varnish problem that appears together with rising bearing temperature, rising vibration, air in oil, cooling loss, or increasing wear metals is very likely being accelerated by a mechanical fault.

---

Corrective actions

The first correction is not simply changing the oil. If varnish deposits remain in the machine, they can re-dissolve or release into new oil and contaminate the system again. Field experience with varnish-removal systems shows that heavy deposits can cause varnish levels to return if the system is not cleaned deeply enough and if formation is not controlled.

Best practice is to remove the root cause and clean the system at the same time:

1. Restore temperature control: clean coolers, verify thermostatic/control valves, correct oil supply temperature, and confirm bearing return temperatures.
2. Correct alignment and loading: check coupling alignment hot and cold, pipe strain, casing distortion, thermal growth, thrust balance, axial position, and bearing clearances.
3. Eliminate air entry: fix suction leaks, pump seal leaks, low oil level, vortexing, return-line splashing, and reservoir deaeration problems.
4. Stabilize oil flow: correct pump wear, relief-valve bypassing, blocked orifices, filter DP, clogged strainers, and restricted bearing drains.
5. Control electrostatic discharge: use ESD-resistant filter media where needed, reduce excessive flow density, inspect filter elements for spark marks, and review grounding/bonding.
6. Remove contamination: repair seals and breathers, remove water, clean sludge from tanks and coolers, and prevent incompatible top-up oil.
7. Use varnish-removal technology carefully: kidney-loop filtration, ion-exchange/resin, electrostatic cleaning, depth media, or adsorption systems may be used, but compatibility with the turbine oil additive system should be verified.
8. Trend, do not guess: compare oil-analysis trends with machine data. A single MPC or TAN result rarely tells the full story.

Bottom line

The turbomachinery faults most likely to cause premature varnishing are: bearing overheating, misalignment, thrust overload, oil starvation, cooling failure, air entrainment, pump cavitation, electrostatic discharge at filters, seal contamination, wear-metal generation, rotor rubs, and poor drain/low-flow zones. They all accelerate varnish by one or more of these mechanisms: heat, oxidation, thermal cracking, micro-dieseling, high shear, contamination, catalytic metals, or poor removal of degradation products.
